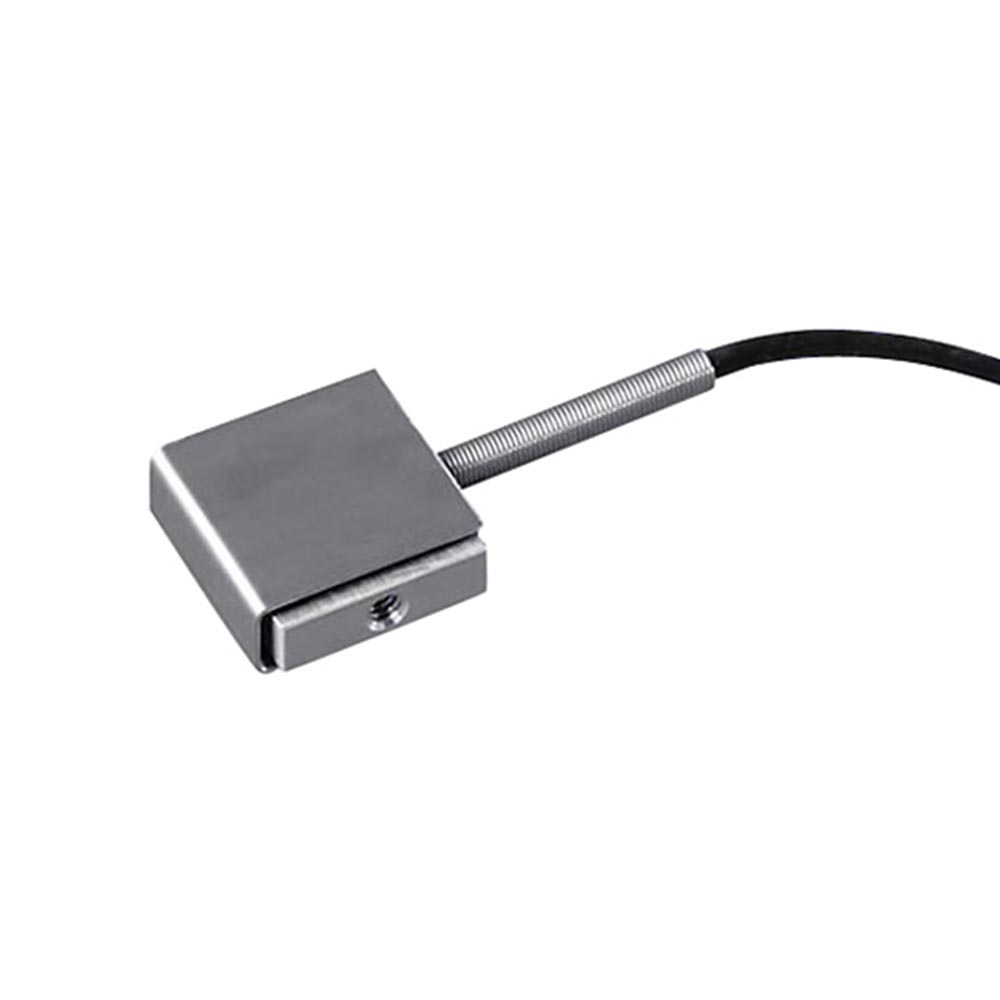

Mini SEJ-Z load cell with stop
Low range load cell with mechanical stop
Capacity from 1 to 5N
High precision loadcells for tension & compression ,recommended for low range and high precision measurements, recommended for all high precision measurements, test benches, laboratory tests, process control equipments. These loadcells are protected against accidental overloads in tension and compression.
“S” load cells provide superior performance in compact packaging.
Description
Benefits
- Tension & compression
- Capacities from 1 N à 5 N
- Mechanical stop
Options
- Rings and hooks
- Load button
- Longer length for cable
Informations complémentaires
| Impédance de sortie | 300 to 400 Ohms |
|---|---|
| Sensibilité | 1mV/V pour 1N ; 1,5mV/V for |
| Matière | Alluminium alloy |
| Alimentation | 10 V (Max 15V) |
| Linéarité et Hystérésis combinés | 0,1 % P.E (Pleine échelle) |
| Offset | < ± 1mV |
| Longueur de câble | 2m |
| Conformité | CE EN 61010-1, EN 50081-1, EN 50082-1 |
| Capacité | 1 to 5 N |
