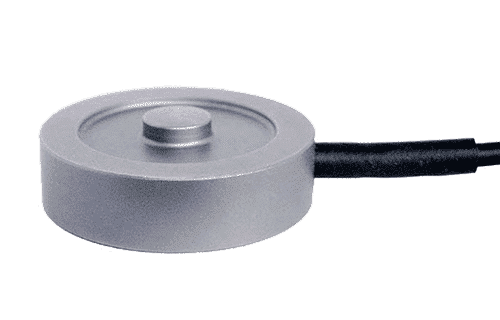

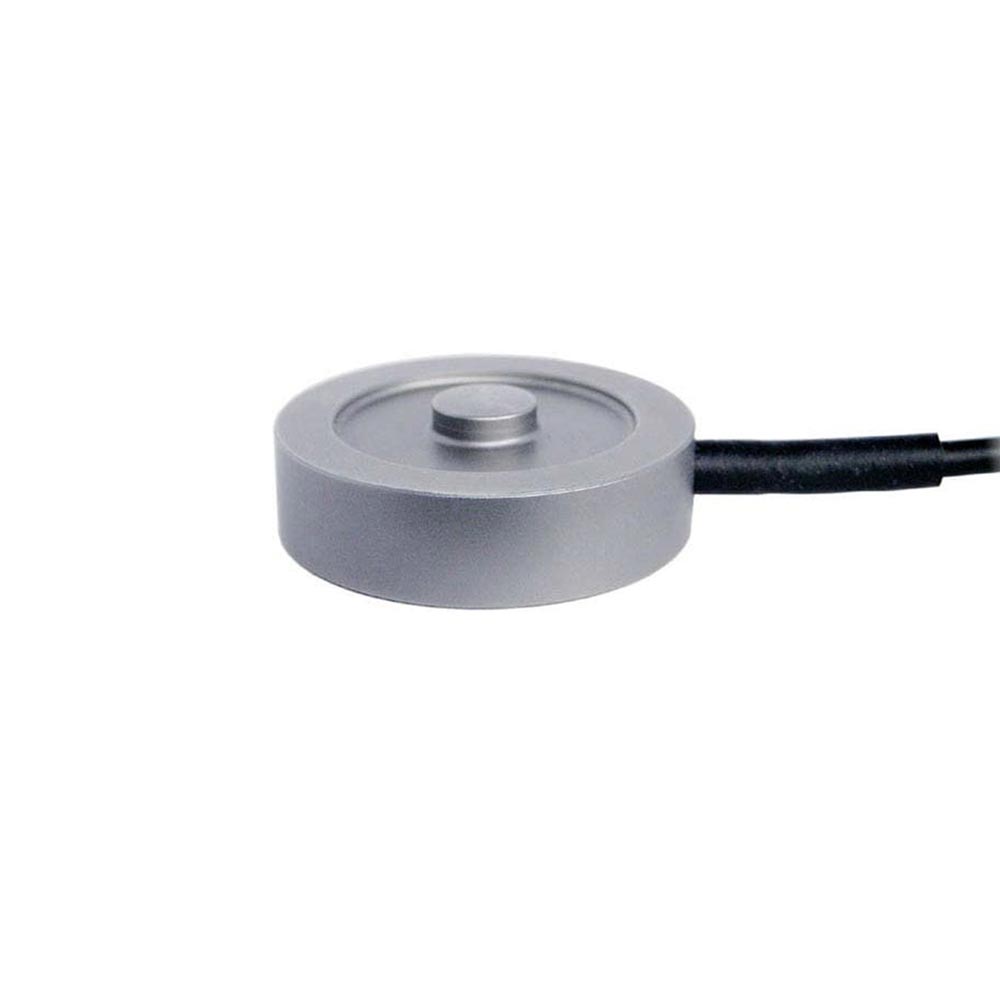

Miniature compression cell FJ
Miniature button loadcell
Capacity from 1000N to 200 kN
FJ Series miniature low-profile load cells are compression load cells with excellent long-term stability.
Their stainless steel design ensures their resistance in demanding industrial environments.

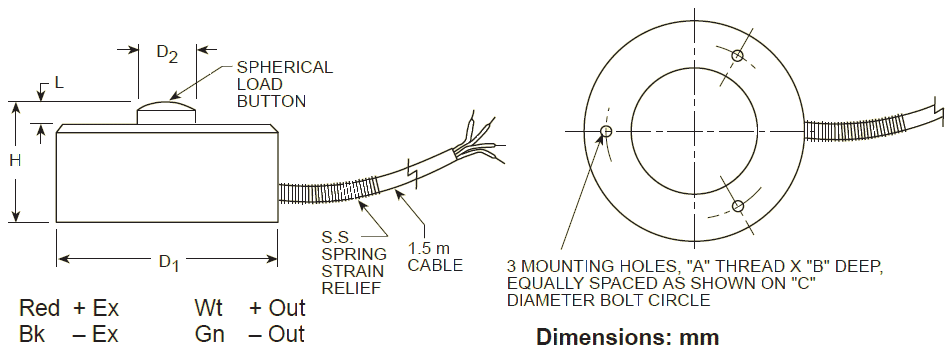

These sensors are designed to be mounted on a flat surface, they are equipped with a spherical button for optimal support. To be connected to the ACRN measuring consoles.
Description
Benefits
- High precision
Capacity from 1000N to 200 kN
- Miniature cells
- Inox
13 Capacities |
|
| N | Lb |
| 100 | 22.5 |
| 200 | 45 |
| 500 | 112 |
| 1000 | 225 |
| 2000 | 450 |
| 5000 | 1124 |
| 10 000 | 2248 |
| 20 000 | 4496 |
| 50 000 | 11 240 |
| 60 000 | 13 488 |
| 80 000 | 17 984 |
| 120 000 | 26 976 |
| 200 000 | 44 960 |
Informations complémentaires
| Alimentation | 10V dc |
|---|---|
| Sensibilité | 2 mV/V |
| Linéarité | 0.25% F.S (Full scale) |
| Hysteresis | 0.25 % F.S |
| Répétabilité | 0.10 % F.S |
| Zero Balance | +/-2 % F.S |
| Températures d’utilisation | -54 to 121°C |
| Echelle de temperature compensée | 16 to 71°C |
| Surcharge admissible | 150% of capacity |
| Surcharge de rupture | 300% of capacity |
| Impédance de sortie | 350 Ohm minimum |
| Deflection | 0.076 mm |
| Longueur de câble | 1.5m |
