NAA Electronic Torquemeter
An economical, robust and simple device
This eletronic torquemeter, which measures the tightening and unscrewing torque of industrial products, is designed for both production environments and quality laboratories.
Eletronic Torquemeter NAA Data Sheet
Description
The strengths of the Electronic Torquemeter NAA
Wide variety of clamping
It can accommodate the very wide range of ACRN clamps, the result of 20 years of experience for a perfect gripping of your samples.
ACRN Quality
The components of our machines ensure a long lifespan and their independence allows a more efficient and less expensive after-sales service. Permanent evolution thanks to the compositions of the machines.
Ergonomic
In addition to being easily transportable, it has a very easy-to-use three-key menu offering fundamental features for a torque meter.
Tightening example

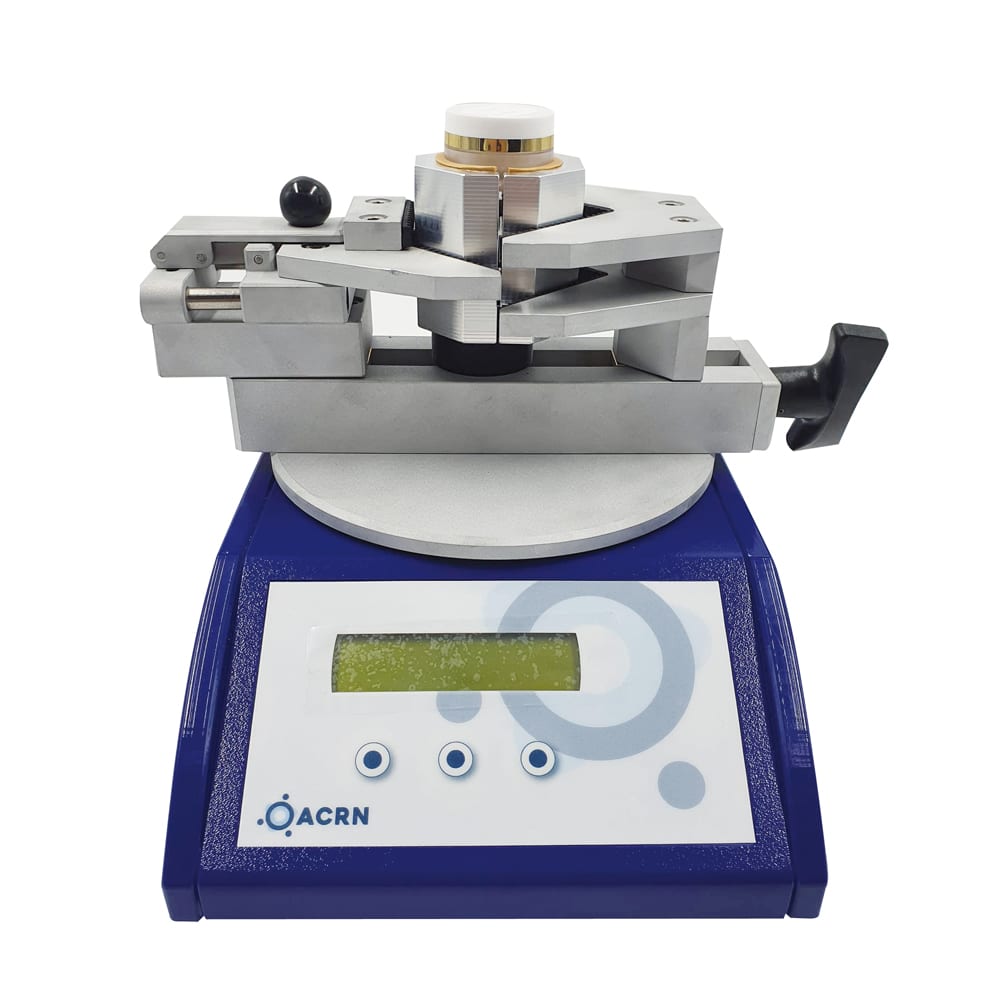

Clamping with V-Jaws
4- Studs Clamping
4- Studs Clamping
Can clamping
Fast Clamping with interchangeable jaws
Specific Clamping
Key Features of the Eletronic Torquemeter
| Measurement torque | Max (peak), Max with lower limit, reset |
| Sensor capacity | Reinforced self-stabilizing capacity sensors NM: 0.5 / 1/3/5/10/25 |
| Units | N.m / lbf.inch / N.cm / Kgf.cm |
| Sampling frequency | 5000 Hz |
| Sensor Information | Sensor offset indicator in case of hardware issue |
| Calibration date | Programmable calibration overrun reminder |
| Access limit | Administrator access by configurable password |
Options
| Drums | Lithium Ion: 24h autonomy in operation |
| Protection | IP reinforced protection |
| Connectivity | Connection cable |
Informations complémentaires
| Contenu | Mains cable |
|---|---|
| Précision | 0.1% PE |
| Résolution de l’affichage | 0.001 Nm up to 6 Nm, 0.003 beyond |
| Alimentation | 220V 50-60 Hz |
| Poids | 4.3 Kilos |
| Encombrement | L180 x P260 x H80 mm with 4-stud clamping |
| Environnement | from 4 ° C to 37 ° C |
| Surcharge admissible du capteur | 150% f.s with audible alarm beyond 2% overshoot |
| Ecran | 80×21 mm backlit LCD display |
| Langues | English, French, Spanish |
| Garantie | 2 years |
| Port série | RS232 |
